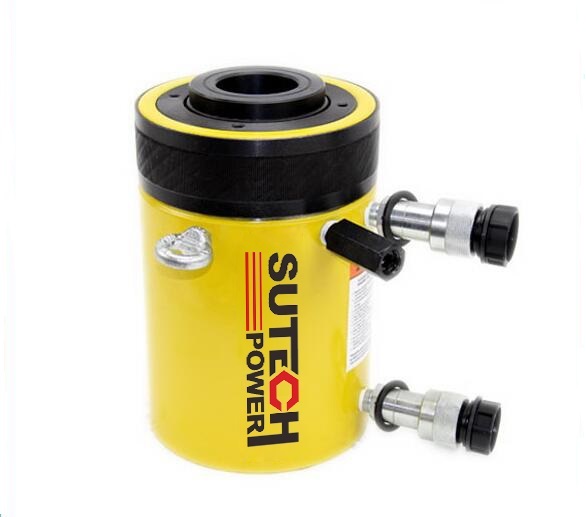

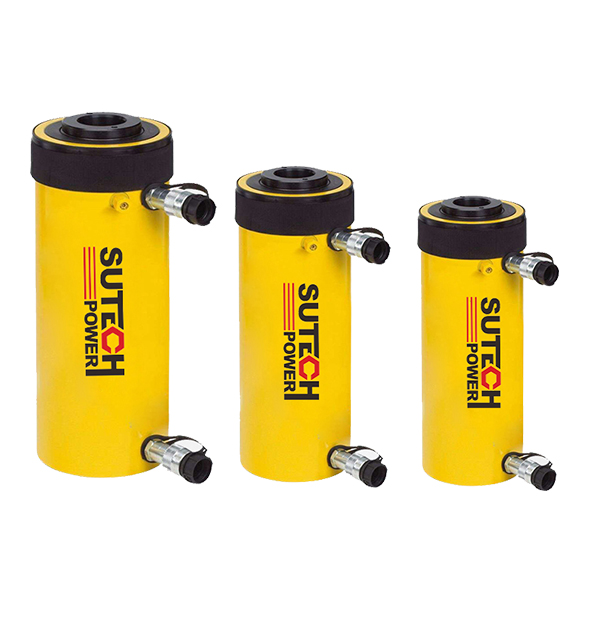

Hollow plunger allows for both pull and push forces
Relief valves prevent damage in case of over-pressurization
Baked enamel finish for increased corrosion resistance
Collar threads enable easy fixturing (except RRH-1001 and RRH-1508)
Double-acting version for fast hydraulic retraction
Nickel-plated, floating center tube increases product life NPT 3/8 coupler and dust cap included on all models
Plunger wiper reduces contamination, extending cylinder life
| Model | Pressure@700bar ton | Stroke | Capacity | Effective area | Oil capacity | Closed Height | Extending | Out diameter | Central hole diameter | Weight | |||
| Push | Pull | Push | Pull | Push | Pull | ||||||||
| RRH-307 | 30 | 178 | 30 | 23.0 | 46.6 | 30.4 | 829 | 541 | 330 | 508 | 114 | 33.3 | 22 |
| RRH-3010 | 257 | 30 | 23.0 | 46.6 | 30.4 | 1202 | 781 | 432 | 689 | 114 | 33.3 | 27 | |
| RRH-603 | 60 | 89 | 60 | 41.8 | 82.2 | 54.0 | 733 | 481 | 248 | 337 | 159 | 53.8 | 28 |
| RRH-606 | 165 | 60 | 41.8 | 82.2 | 54.0 | 1366 | 891 | 324 | 489 | 159 | 53.8 | 35 | |
| RRH-6010 | 257 | 60 | 41.8 | 82.2 | 54.0 | 2115 | 1388 | 438 | 695 | 159 | 53.8 | 46 | |
| RRH-1001 | 100 | 38 | 100 | 67.7 | 133.1 | 87.4 | 505 | 332 | 165 | 203 | 213 | 79.2 | 39 |
| RRH-1003 | 76 | 100 | 67.7 | 133.1 | 87.4 | 1011 | 664 | 254 | 330 | 213 | 79.2 | 61 | |
| RRH-1006 | 152 | 100 | 67.7 | 133.1 | 87.4 | 2035 | 1328 | 342 | 495 | 213 | 79.2 | 79 | |
| RRH-10010 | 257 | 100 | 67.7 | 133.1 | 87.4 | 3420 | 2246 | 460 | 718 | 213 | 79.2 | 107 | |
| RRH-1508 | 150 | 203 | 150 | 76.0 | 204.1 | 102.6 | 4144 | 2083 | 349 | 552 | 248 | 79.2 | 111 |
