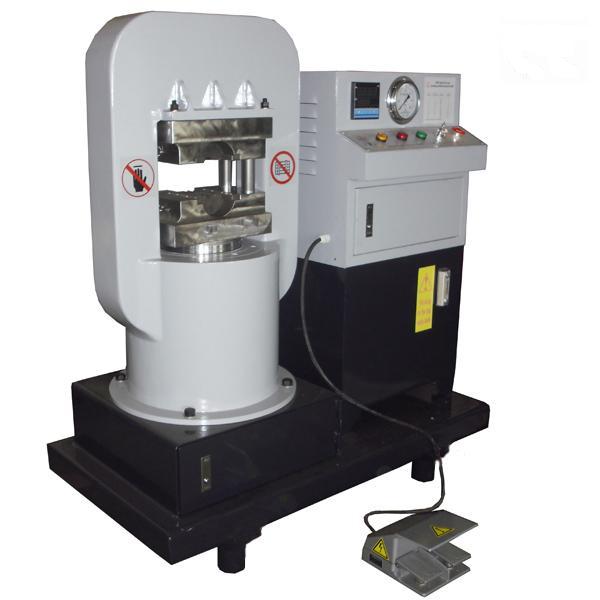

200 Ton Hydraulic Steel Wire Rope Press Machine

Availability:
sharethis sharing button

SUTECH wire rope press machines are used to make wire rope slings. SUTECH machines have exported to UK, Australia, Thailand, India, Nigeria, Russia, Botswana, Polland, South Africa and so on.



Feature:

1.The swage constructions are forged from high strength alloy steel. The body off swagers are manufactured from one single block construction that ensure strength and long service life.

2. Sutech steel wire rope press machine adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.

3. The die tables of Sutech machines are designed to change different mold easy. Clients can press other products through changing dies.

4.All Sutech dies are made of high quality die steel and undergoes high temperature, queching, tempering and other processes, becoming sturdy and durable.

Mode No.

ST-200T

Max press power (KN)

2000

Max wire rope diameter in one pressing (mm)

Φ20

Max wire rope diameter in multi-pressing (mm)

Φ22

Power (KW)

3

Max working pressure (Mpa)

58Mpa

Max piston movement (mm)

78

The up speed of piston (mm/sec)

8

The down speed of piston (mm/sec)

10

Total length (mm)

1100

Total width (mm)

550

Total height (mm)

1300

Net weight (kg)

900
